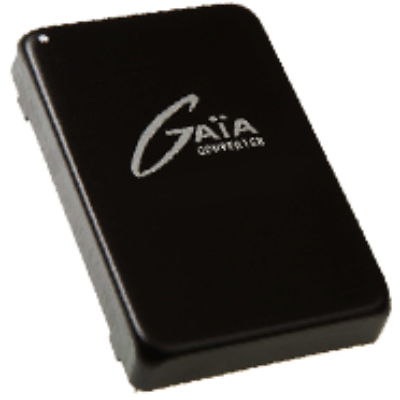

GAIA AC/DC模塊電源 35W-350W系列
AC-DC Power Factor Corrected Front-Ends
Gaia Converter's family of AC/DC power factor corrected modules are designed to be compatible with the latest airborne AC input bus voltages and and variable frequencies. The modules accept an AC input voltage with active power factor correction that enables extremely low levels of current harmonic distortion. The modules are compliant with numerous avionics/military standards requirements such as DO-160, ABD-100, Mil-Std-704.
The Gaia Converter AC-DC Front-End modules include a soft start an active inrush current limitation, a permanent short circuit protection and an inhibit function. The soft-start/active current limitation eliminates inrush current during start-up, the short circuit protection protects the module against short-circuits of any duration by a shutdown and restores to normal when the overload is removed.
Family
|
Power
|
Output
|
Input
|
Isolation
|
HGMB-35
|
35 Watts
|
Dual 17Vdc or
Single 34Vdc
|
95-140Vac/320-800Hz
|
1500V rms
|
HGMB-50
NEW!
|
50 Watts
|
Dual 17Vdc or
Single 34Vdc
|
95-140Vac/320-800Hz
|
1500V rms
|
HGMS-150
|
150 Watts
|
375 Vdc
|
95-140Vac/320-800Hz
|
n/a
|
HGMS-350
|
350 Watts
|
375 Vdc or 420 Vdc
|
95-140Vac/320-800Hz
95-140Vac/47-440 Hz
85-265Vac/ 50-60Hz
|
n/a
|
* = Hi-Rel Grade available = Industrial Grade available
|
