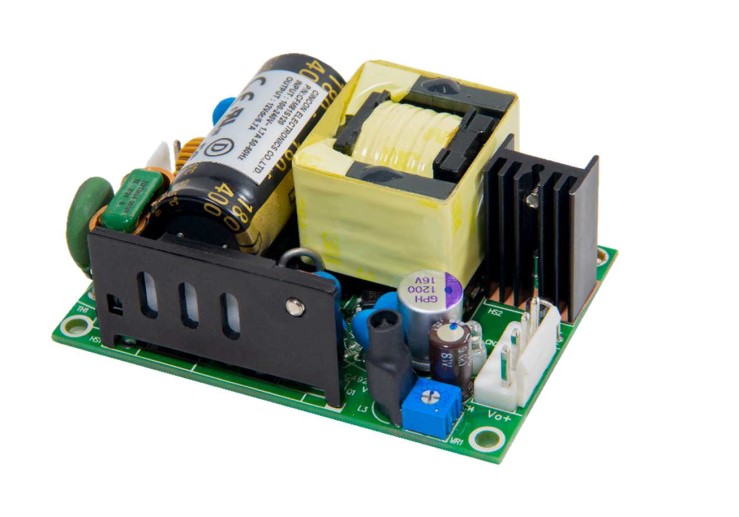

AC-DC switching power supply module open frame type
Cincon Open Frame AC-DC switching power supplies module offers Connector type, Baseplate-cooled type and PCB mounting type, with power ranging from 6W to 500W, they are some of highest power density products in the current market. All products are approved for latest ITE safety or Medical safety. For some of our latest models, they meet EN/IEC 60335-1, and include a unique feature of 200% peak load feature. This special 200% peak load feature fulfills the need to customer sudden needs of power for a short period of time, and can now avoid choosing other products that are over-spec, save on cost and layout space/footprint consumption.
Cincon AC-DC switching power supply module introduction
For industrial, ITE, 5G telecom applications, there are Class I, Class II, and both Class I & Class II categories to choose. The power range of Class I power supplies starts from 20W to 300W. The power range of Class II power supplies starts from 6W to 60W. The power range of the category with both options starts from 80W, 130W, and 150W.
For medical application, there are three categories of “Class II”, “Class I” and “Class I & Class II”. The Class II medical power supply has only one 20W. In Class I category, the power range starts from 40W to 500W. For Class I & Class II category, the power output has 130W and 200W.
ITE/Industrial On-Board Open Frame
|
|
Model
|
Power
|
Input Voltage
|
Output Voltage
|
Features
|
Dimensions (Inch)
|
|
NEW
|
CFM06S
|
6W
|
90-264
|
3.3V, 5V, 9V, 12V, 15V, 24V
|
Altitude 5000m
Meets EN60335-1
Class II
|
1.555x0.764x0.720
(PCB-mount)
1.618x0.827x0.787
(Encapsulated)
1.950.x0.728x0.689
(Wafer)
|
|
NRND
|
CFM10
|
10W
|
85-264
|
3.3V, 5V, 9V, 12V, 15V, 24V
|
Leakage Current 0.25mA
|
2.599x1.772x0.906
(PCB-mount)
|
|
|
CFM12S
|
12W
|
90-264
|
5V, 9V, 12V, 15V, 24V
|
Altitude 5000m
Approval EN60335-1
Class II
|
1.500x1.000x0.764
(PCB-mount)
1.600x1.1x0.772
(Encapsulated)
2.150x1.000x0.681
(Wafer)
|
|
NRND
|
CFM15
|
15W
|
85-264
|
3.3V, 5V, 9V, 12V, 15V, 24V
|
Leakage Current 0.25mA
|
2.752x1.890x0.906
(PCB-mount)
|
|
|
CFM25S
|
25W
|
90-264
|
5V, 12V, 15V, 24V, 36V, 48V
|
2 Times Peak Load
Altitude 5000m
Approval EN60335-1
Class II
|
2.000x1.100x0.980
(PCB-mount)
2.091x1.193x0.976
(Encapsulated)
2.776x1.100x0.906
(Wafer)
|
|
NEW
|
CFM41S
|
40W
|
90-264
|
12V, 15V, 24V, 36V, 48V, 5V
|
2 Times Peak Load
Altitude 5000m
Meets EN60335-1
Class II
|
2.000x2.000x1.01
(PCB-mount)
2.14x2.14x1.035
(Encapsulated)
2.70x2.00x0.941
(Wafer)
|
|
NEW
|
CFM61S
|
60W
|
90-264
|
5V, 12V, 15V, 24V, 36V, 48V
|
2 Times Peak Load
Altitude 5000m
Class II
|
2.000x2.000x1.346
(PCB-mount)
2.136x2.136x1.409
(Encapsulated)
2.700x2.000x1.291
(Wafer)
|
ITE/Industrial Connector Open Frame
|
|
Model
|
Power
|
Input Voltage
|
Output Voltage
|
Features
|
Dimensions (Inch)
|
|
NEW
|
CFM50S
|
50W
|
90-264
|
5V, 12V, 15V, 24V, 36V, 48V
|
Altitude 5000m
Meets EN60335-1
ClassⅠ& Class Ⅱ
|
3.000x2.000x1.067 (Wafer)
3.000x2.00x1.142 (PCB Mount)
3.598x2.520x1.358 (Cover)
|
|
|
CFM20
|
20W
|
85-264
|
3.3V, 5V, 9V, 12V, 15V, 24V
|
Low Profile
|
3.501x2.000x1.000
(PCB-mount)
3.501x2.000x0.906
(Wafer)
|
|
|
CFM40S
|
40W
|
90-264
|
3.3V, 5V, 9V, 12V, 15V, 24V, 30V, 36V, 48V
|
High Peak Load
|
4.000x2.000x1.275
(PCB-mount)
4.000x2.000x1.200
(Wafer)
4.606x2.441x1.575
(Cover)
|
|
|
CFM40D/T
|
40W
|
90-264
|
3.3V/5V/-12V, 5V/12V, 5V/12V/-12V, 5V/12V/-5V, 5V/15V/-15V, 5V/24V, 5V/24V/-12V, 5V/24V/-5V, 5V/24V/12V
|
Dual & Triple Outputs
|
4.000x2.000x1.200
(Wafer)
4.606x2.441x1.575
(Cover)
|
|
|
CFM60S
|
60W
|
90-264
|
3.3V, 5V, 9V, 12V, 15V, 24V, 30V, 36V, 48V
|
High Peak Load
|
4.000x2.000x1.275
(PCB-mount)
4.000x2.000x1.200
(Wafer)
4.606x2.441x1.575
(Cover)
|
|
|
CFM60T
|
60W
|
90-264
|
3.3V/5V/-12V, 5V/12V/-12V, 5V/15V/-15V, 5V/24V/-12V
|
Triple Outputs
|
4.000x2.000x1.260
(Wafer)
|
|
NEW
|
CFM70S
|
70W
|
90-264
|
5V, 12V, 15V, 24V, 36V, 48V
|
Altitude 5000m
Meets EN60335-1
ClassⅠ& Class Ⅱ
|
3.000x2.000x1.067 (Wafer)
3.000x2.00x1.142 (PCB Mount)
3.598x2.520x1.358 (Cover)
|
|
|
CFM80S
|
80W
|
90-264
|
5V, 12V, 15V, 24V, 48V
|
EN61000-3-2 Class A
|
4.000x2.000x1.142
(PCB-mount)
4.000x2.000x1.07
(Wafer)
|
|
NEW
|
CFM81S
|
80W
|
90-264
|
12V, 15V, 24V, 48V
|
2 Times Peak Load
Altitude 5000m
Approval EN60335-1
ClassⅠ& Class Ⅱ
|
3.000x2.000x1.339 (Wafer)
3.200x2.441x1.575 (Cover)
|
ITE/Industrial Baseplate-cooled Open Frame
|
|
Model
|
Power
|
Input Voltage
|
Output Voltage
|
Features
|
Dimensions (Inch)
|
|
NEW
|
CFM130S
|
130W
|
80-264
|
12V, 18V, 19V, 24V, 36V, 48V
|
Altitude 5000m
Meets EN60335-1
ClassⅠ& Class Ⅱ
|
3.000x2.000x1.20 (Open-frame)
3.598x2.000x1.299 (Baseplate)
3.598x2.520x1.358 (Cover)
|
|
NEW
|
CFM150S
|
150W
|
90-264
|
12V, 24V, 28V, 36V, 48V
|
Altitude 5000m
Meets EN60335-1
Class I & Class II
|
4.00x2.00x1.283
(Open-frame)
4.598x2.00x1.362
(Baseplate)
|
|
NEW
|
CFM260S
|
260W
|
85-264
|
12V, 24V, 36V, 48V
|
Altitude 5000m
Meets EN60335-1
Class I
|
4.000x2.000x1.441
(Open-frame)
4.598x2.000x1.520
(Baseplate)
4.598x2.520x1.594
(Cover)
|
|
|
CFM300S
|
300W
|
90-264
|
12V, 24V, 36V, 48V
|
Altitude 5000m
Meets EN60335-1
Class I
|
5.000x3.000x1.421
(Baseplate)
5.355x3.425x1.591
(Cover)
|
|
NEW
|
CFM500S
|
500W
|
80-264
|
12V, 18V, 24V, 36V, 48V
|
Altitude 5000m
Meets EN60335-1
|
5.000x3.000x1.540
(Baseplate)
5.354x3.425x1.673
(Cover)
|
Medical Class II On-Board Open Frame
|
|
Model
|
Power
|
Input Voltage
|
Output Voltage
|
Features
|
Dimensions (Inch)
|
|
|
CFM21
|
20W
|
90-264
|
3.3V, 5V, 9V, 12V, 15V, 24V
|
2MOOP
|
2.38x1.60x0.80
(PCB-mount)
3.00x1.60x0.77
(Wafer)
2.53x1.74x0.80
(Encapsulated)
3.00x1.60x0.77
(Screw Terminal)
|
|
|
CFM21M
|
20W
|
90-264
|
5V, 9V, 12V, 15V, 24V
|
2MOPP
Low Profile
Altitude 5000m
|
2.38x1.60x0.80
(PCB-mount)
3.00x1.60x0.77
(Wafer)
2.53x1.74x0.80
(Encapsulated)
3.00x1.60x0.77
(Screw Terminal)
|
Medical Class I Connector Open Frame
|
|
Model
|
Power
|
Input Voltage
|
Output Voltage
|
Features
|
Dimensions (Inch)
|
|
|
CFM40M
|
40W
|
90-264
|
3.3V, 5V, 9V, 12V, 15V, 24V, 30V, 36V, 48V
|
2MOPP
Meets EN60335-1
|
3.000x2.000x0.948
(PCB-mount)
3.000x2.000x0.909
(Wafer)
3.200x2.441x1.260
(Cover)
|
|
|
CFM60M
|
60W
|
90-264
|
5V, 12V, 15V, 24V, 48V
|
2MOPP
|
4.000x2.000x1.100
(Wafer)
4.606x2.441x1.575
(Cover)
|
|
|
CFM100M
|
100W
|
90-264
|
5V, 7.5V, 9V, 12V, 15V, 18V, 24V, 28V, 36V, 48V
|
2MOPP
|
5.000x3.000x1.050
(Wafer)
|
|
|
CFM150M
|
150W
|
90-264
|
12V, 24V, 36V, 48V
|
2MOPP
|
5.000x3.000x1.050
(Wafer)
|
Medical Baseplate-cooled Open Frame
|
|
Model
|
Power
|
Input Voltage
|
Output Voltage
|
Features
|
Dimensions (Inch)
|
|
NEW
|
CFM130M
|
130W
|
80-264
|
12V, 18V, 19V, 24V, 36V, 48V
|
2MOPP
Altitude 5000m
Meets EN60335-1
Class I & Class II
|
3.000x2.000x1.20
(Open-frame)
3.598x2.000x1.299
(Baseplate)
3.598x2.520x1.358
(Cover)
|
|
|
CFM200M
|
200W
|
90-264
|
12V, 24V, 48V
|
2MOPP
Class I & Class II
|
4.000x2.000x1.480
(Baseplate)
4.606x2.441x1.594
(Cover)
|
|
|
CFM300M
|
300W
|
90-264
|
12V, 24V, 36V, 48V
|
2MOPP
Class I
|
5.000x3.000x1.421
(Baseplate)
5.355x3.425x1.591
(Cover)
|
|
NEW
|
CFM500M
|
500W
|
80-264
|
12V, 18V, 24V, 36V, 48V
|
2MOPP
Altitude 5000m
Meets EN60335-1
Class I
|
5.000x3.000x1.540
(Baseplate)
5.354x3.425x1.673
(Cover)
|
|
