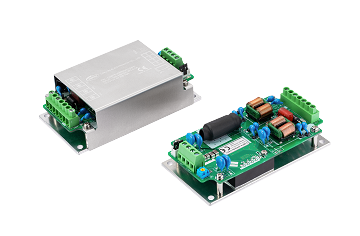

Cincon provides 20W-750W, Chassis-Mount & DIN-rail DC-DC converters featuring an integrated heat sink for improved thermal performance. Features includes wide input range, input over voltage protection, regulated outputs and continious short circuit protection.
16:1 Input Range
|
|
Model
|
Power
|
Input Voltage
|
Output Voltage
|
Features
|
Dimensions (Inch)
|
|
NEW
|
EC7BW18-ECRT/EDRT
|
20W
|
10~160V
|
12V, 15V, 5V, ±12V, ±15V, ±24V
|
EN50155/ EN50121-3-2/ EN45545-2 Compliant
Low Inrush Current
Input Reverse Polarity Protection
EN50155 Class S3/ Class C2 Criteria A Without External Capacitor
|
4.45x2.33x0.85
(ECRT)
4.45x2.33x1.43
(EDRT)
|
12:1 Input Range
|
|
Model
|
Power
|
Input Voltage
|
Output Voltage
|
Features
|
Dimensions (Inch)
|
|
NEW
|
CQB50W12-72SXX-CMFC(D)
|
50W
|
14~160V
|
12V, 24V, 48V, 5V
|
Screw Terminal
Build in filter
Baseplate Cooled
EN45545-2
EN50155 Compliant
|
4.60x2.40x1.26
(CMFC)
4.60x2.49x1.35
(CMFD)
|
8:1 Input Range
|
|
Model
|
Power
|
Input Voltage
|
Output Voltage
|
Features
|
Dimensions (Inch)
|
|
NEW
|
CQB50W8-36SXX-CMFC(D)
|
50W
|
9.5~75V
|
12V, 15V, 24V, 28V, 48V
|
Screw Terminal
Build in filter
Baseplate Cooled
EN45545-2
EN50155 Compliant
|
4.60x2.40x1.46
(CMFC)
4.60x2.49x1.46
(CMFD)
|
|
NEW
|
CQB75W8-36SXX-CMFC(D)
|
75W
|
9.5~75V
|
12V, 15V, 24V, 28V, 48V
|
Screw Terminal
Build in filter
Baseplate Cooled
EN45545-2
EN50155 Compliant
|
4.60x2.40x1.46
(CMFC)
4.60x2.49x1.46
(CMFD)
|
4:1 Input Range
|
|
Model
|
Power
|
Input Voltage
|
Output Voltage
|
Features
|
Dimensions (Inch)
|
|
|
CHB/CHE50-100W-CM/DIN
|
100W, 50W, 75W
|
18~75V, 9~36V
|
12V, 15V, 24V, 28V, 3.3V, 48V, 5V
|
Screw Terminal
|
4.61x2.54x1.03
|
|
|
CQB/CQE50-150W-CM/DIN
|
100W, 150W, 50W, 75W
|
18~75V, 43~160V, 66~160V, 9~36V
|
12V, 15V, 24V, 28V, 3.3V, 48V, 5V
|
Screw Terminal
|
4.41x1.57x1.98
|
|
NEW
|
CQB100W-110SXX-CMFC(D)
|
100W
|
43~160V
|
5V, 12V, 15V, 24V, 28V, 48V
|
Screw Terminal
Build in filter
Baseplate Cooled
EN45545-2
EN50155 Compliant
|
4.60x2.40x1.26
(CMFC)
4.60x2.49x1.35
(CMFD)
|
|
|
CQB150W-110SXX-CMFC(D)
|
150W
|
43~160V
|
3.3V, 5V, 12V, 15V, 24V, 28V, 48V
|
Screw Terminal
Build in filter
Baseplate Cooled
EN45545-2
EN50155 Compliant
|
4.60x2.40x1.26
(CMFC)
4.60x2.49x1.35
(CMFD)
|
|
NEW
|
CHB200W-110SXX-CMFC(D)
|
200W
|
43~160V
|
5V, 12V, 24V, 28V, 48V
|
Screw Terminal
Build in filter
Baseplate Cooled
EN45545-2
EN50155 Compliant
|
6.50x3.00x1.52
(CMFC)
6.50x3.09x1.57
(CMFD)
|
|
NEW
|
CHB300W-110SXX-CMFC(D)
|
300W
|
43~160V
|
3.3V, 5V, 12V, 24V, 28V, 48V
|
Screw Terminal
Build in filter
Baseplate Cooled
EN45545-2
EN50155 Compliant
|
6.50x3.00x1.52
(CMFC)
6.50x3.09x1.57
(CMFD)
|
|
NEW
|
CFB600W-110SXX CMFD
|
600W
|
43~160VDC
|
12V, 24V, 28V, 48V
|
Screw Terminal
Build in filter
Baseplate Cooled
EN45545-2
EN50155 Compliant
|
9.45x4.33x1.65
|
2:1 Input Range
|
|
Model
|
Power
|
Input Voltage
|
Output Voltage
|
Features
|
Dimensions (Inch)
|
|
NEW
|
CQB75-300S-CMFC(D)
|
75W
|
180~450V
|
3.3V, 5V, 12V, 15V, 24V, 48V
|
Screw Terminal
Build in filter
EN45545-2
Baseplate Cooled
|
4.60x2.40x1.24
(CMFC)
4.60x2.49x1.35
(CMFD)
|
|
NEW
|
CQB150-300SXX CMFC(D)
|
150W
|
180~425V
|
12V, 15V, 24V, 28V, 48V, 5V
|
Screw Terminal
Build in filter
EN45545-2
Baseplate Cooled
|
4.60x2.40x1.26
(CMFC)
4.60x2.49x1.35
(CMFD)
|
|
NEW
|
CHB300-300SXX CMFC(D)
|
300W
|
180~425V
|
12V, 24V, 28V, 48V, 5V
|
Screw Terminal
Build in filter
EN45545-2
Baseplate Cooled
|
6.50x3.00x1.52
(CMFC)
6.50x3.09x1.57
(CMFD)
|
|
NEW
|
CFB750-300SXX-CMFD
|
750W
|
200~425V
|
12V, 15V, 24V, 28V, 36V, 48V
|
Screw Terminal
Build in filter
EN45545-2
Baseplate Cooled
|
9.45x4.33x1.65
|
|
