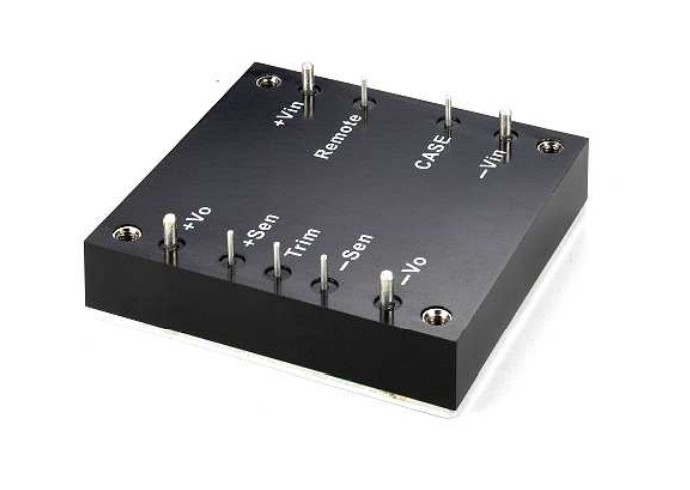

Cincon offers a variety of high input voltage DC-DC converters from 150W-750W in industry standard quarter, half and full brick sizes. They provide a 300Vdc nominal input (with an input range of 180 to 425Vdc) and 3000VAC reinforced isolation, which are suitable for distributed power architectures, telecommunications, servers, base station, battery operated equipment, and industrial applications.
Cincon DC-DC converters are constant switching frequency design. There are two types of DC-DC converts. One is constant switching frequency, and the other one is variable switching frequency. In general, one of the important advantages of constant switching frequency is the solution to the EMI issue is much easier. In addition, if the system requires the parallel function, Cincon full brick high input voltage DC-DC converters provide active current share with the parallel function.
Cincon also provides various heatsinks to solve temperature issues and plug-in ready to use chassis-mount DC-DC modules including EMI solution to shorten your product development time. Now we have 150W and 300W modules for you to choose.
2:1 Input Range
|
|
Model
|
Power
|
Input Voltage
|
Output Voltage
|
Features
|
Dimensions (Inch)
|
|
NEW
|
CQB75-300S
|
75W
|
180~450V
|
12V, 15V, 24V, 3.3V, 48V, 5V
|
3KVAC Isolation
UL62368-1 & CB
|
2.28×1.45x0.50
(Quarter Brick)
|
|
NEW
|
CQB75-300S-CMFC(D)
|
75W
|
180~450V
|
3.3V, 5V, 12V, 15V, 24V, 48V
|
Screw Terminal
Build in filter
EN45545-2
Baseplate Cooled
|
4.60x2.40x1.24
(CMFC)
4.60x2.49x1.35
(CMFD)
|
|
|
CQB150-300S
|
150W
|
180~425V
|
12V, 15V, 24V, 28V, 48V, 5V
|
3KVAC Isolation
UL62368-1 & CB
|
2.28×1.45x0.50
(Quarter Brick)
|
|
NEW
|
CQB150-300SXX CMFC(D)
|
150W
|
180~425V
|
12V, 15V, 24V, 28V, 48V, 5V
|
Screw Terminal
Build in filter
EN45545-2
Baseplate Cooled
|
4.60x2.40x1.26
(CMFC)
4.60x2.49x1.35
(CMFD)
|
|
|
CHB300-300S
|
300W
|
180~425V
|
12V, 24V, 28V, 48V, 5V
|
3KVAC Isolation
UL60950-1 & CB
|
2.28×2.40x0.50
(Half Brick)
|
|
NEW
|
CHB300-300SXX CMFC(D)
|
300W
|
180~425V
|
12V, 24V, 28V, 48V, 5V
|
Screw Terminal
Build in filter
EN45545-2
Baseplate Cooled
|
6.50x3.00x1.52
(CMFC)
6.50x3.09x1.57
(CMFD)
|
|
|
CFB600-300S
|
600W
|
180~425V
|
12V, 24V, 48V
|
3KVAC Isolation
UL60950-1
|
4.60×2.40x0.50
(Full Brick)
|
|
|
CFB750-300S
|
750W
|
200~425V
|
12V, 15V, 24V, 28V, 36V, 48V
|
3KVAC Isolation
|
4.60×2.40x0.50
(Full Brick)
|
|
NEW
|
CFB750-300SXX-CMFD
|
750W
|
200~425V
|
12V, 15V, 24V, 28V, 36V, 48V
|
Screw Terminal
Build in filter
EN45545-2
Baseplate Cooled
|
9.45x4.33x1.65
|
|
