Brick Power Supply, Brick DC-DC Converter Manufacturer

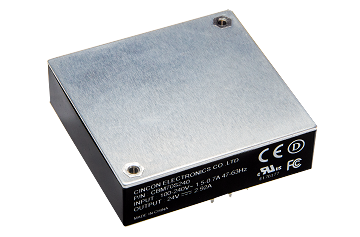

CINCON is a professional DC/DC converter manufacturer, CINCON's DC-DC brick power supply and converter selection is offered in industry standard quarter, half and full brick sizes. CINCON’s DC/DC bricks are to be mounted onto a printed circuit board and feature a wide input voltage range, isolated, regulated output voltages, high efficiency, with full protection.
About Cincon Brick Power Supply and Brick DC-DC Converter
Cincon DC-DC brick converters has the power range starting from 50W to 800W.
For the quarter brick size, we have 50W to the highest power density of 150W and the widest input range is up to 12:1. For the half brick size, we have 50W to the highest power density of 350W and the widest input range is up to 12:1. For the full brick size, we have 400W to the highest power density of 800W and the widest input range is up to 4:1.
Cincon not only provides standard DC-DC brick converters, but also offers Plug-in Ready to Use DC-DC converter modules, CMFC/CMFD series, built-in with EMI solution in order to help you in solving the unpleasant EMC issues. Furthermore, Cincon offers detailed application note as the guideline tool to reduce your development time.
12:1 Input Range
|
|
Model
|
Power
|
Input Voltage
|
Output Voltage
|
Features
|
Dimensions (Inch)
|
|
|
CQB50W12
|
50W
|
14~160V
|
5V, 12V, 24V, 48V
|
3KVdc Isolation
UL62368-1 & CB
EN45545-2
EN50155 Compliant
|
2.28×1.45x0.50
(Quarter Brick)
|
|
NEW
|
CHB150W12
|
150W
|
14~160V
|
5V, 12V, 15V, 24V, 48V
|
3KVac Isolation
UL62368-1 & CB
EN45545-2
EN50155 Compliant
|
2.28×2.40x0.50
(Half Brick)
|
|
NEW
|
CHB200W12
|
200W
|
14~160V
|
12V, 15V, 24V, 48V
|
3KVac Isolation
UL62368-1 & CB
EN45545-2
EN50155 Compliant
|
2.28×2.40x0.50
(Half Brick)
|
8:1 Input Range
|
|
Model
|
Power
|
Input Voltage
|
Output Voltage
|
Features
|
Dimensions (Inch)
|
|
NEW
|
CQB50W8
|
50W
|
9~75V
|
12V, 15V, 24V, 28V, 48V
|
3KVac Isolation
UL62368 & CB
EN45545-2
EN50155 Compliant
|
2.28×1.45x0.50
(Quarter Brick)
|
|
NEW
|
CQB75W8
|
75W
|
9~75V
|
12V, 15V, 24V, 28V, 48V
|
3KVac Isolation
UL62368 & CB
EN45545-2
EN50155 Compliant
|
2.28×1.45x0.50
(Quarter Brick)
|
|
|
CHB150W8
|
150W
|
9~75V
|
12V, 15V, 24V, 28V, 48V
|
1.5KVDC Isolation
UL60950-1
|
2.28×2.40x0.50
(Half Brick)
|
4:1 Input Range
|
|
Model
|
Power
|
Input Voltage
|
Output Voltage
|
Features
|
Dimensions (Inch)
|
|
|
CQE50W
|
50W
|
18~75V, 9~36V
|
12V, 15V, 24V, 3.3V, 48V, 5V
|
1.5KVDC Isolation
UL60950-1
|
2.28×1.45x0.50
(Quarter Brick)
|
|
|
CHB50W
|
50W
|
18~75V, 9~36V
|
12V, 15V, 24V, 28V, 3.3V, 48V, 5V
|
1.5KVDC Isolation
UL60950-1
|
2.28×2.40x0.50
(Half Brick)
|
|
|
CQB60W-110S
|
60W
|
43~160V
|
12V, 15V, 24V, 28V, 48V, 5V
|
3KVdc Isolation
UL60950-1
EN45545-2
EN50155 Compliant
|
2.28×1.45x0.50
(Quarter Brick)
|
|
|
CQB75W
|
75W
|
18~75V, 9~36V
|
12V, 15V, 24V, 3.3V, 5V
|
1.5KVDC Isolation
UL60950-1
|
2.28×1.45x0.50
(Quarter Brick)
|
|
|
CHB75W
|
75W
|
18~75V, 9~36V
|
12V, 15V, 24V, 28V, 3.3V, 48V, 5V
|
1.5KVDC Isolation
UL60950-1
|
2.28×2.40x0.50
(Half Brick)
|
|
|
CQB100W
|
100W
|
18~75V, 9~36V
|
12V, 15V, 24V, 3.3V, 5V
|
1.5KVDC Isolation
UL60950-1
|
2.28×1.45x0.50
(Quarter Brick)
|
|
NEW
|
CQB100W-110S
|
100W
|
43~160V
|
12V, 15V, 24V, 28V, 48V, 5V
|
3KVdc Isolation
UL60950-1 & CB
EN45545-2
EN50155 Compliant
|
2.28×1.45x0.50
(Quarter Brick)
|
|
|
CHB100W
|
100W
|
18~75V, 9~36V
|
12V, 15V, 24V, 28V, 3.3V, 48V, 5V
|
1.5KVDC Isolation
UL60950-1
|
2.28×2.40x0.50
(Half Brick)
|
|
NRND
|
CHE100W
|
100W
|
18~75V, 9~36V
|
12V, 15V, 24V, 3.3V, 48V, 5V
|
1.5KVDC Isolation
|
2.28×2.40x0.50
(Half Brick)
|
|
|
CQB150W
|
150W
|
18~75V, 9~36V
|
12V, 15V, 24V, 28V, 48V, 5V
|
2250Vdc Isolation
UL62368-1 & CB
EN45545-2
EN50155 Compliant
|
2.28×1.45x0.50
(Quarter Brick)
|
|
|
CQB150W-110S
|
150W
|
43~160V
|
3.3V, 5V, 12V, 15V, 24V, 28V, 48V
|
3KVdc Isolation
UL60950-1 & CB
EN45545-2
EN50155 Compliant
|
2.28×1.45x0.50
(Quarter Brick)
|
|
|
CHB150W
|
150W
|
18~75V, 9~36V
|
12V, 15V, 24V, 28V, 3.3V, 48V, 5V
|
1.5KVDC Isolation
UL60950-1
|
2.28×2.40x0.52
(Half Brick)
|
|
|
CHB200W
|
200W
|
10~36V, 18~75V
|
12V, 15V, 24V, 28V, 3.3V, 48V, 5V
|
1.5KVDC Isolation
UL60950-1
|
2.28×2.40x0.52
(Half Brick)
|
|
NEW
|
CHB200W-110S
|
200W
|
43~160V
|
5V, 12V, 24V, 28V, 48V
|
3KVdc Isolation
UL60950-1
EN45545-2
EN50155 Compliant
|
2.28×2.40x0.50
(Half Brick)
|
|
|
CHB300W
|
300W
|
18~75V, 9~36V
|
12V, 15V, 24V, 28V, 48V, 5V
|
1.5KVDC Isolation
UL62368-1
|
2.28×2.40x0.50
(Half Brick)
|
|
|
CHB300W-110S
|
300W
|
43~160V
|
12V, 24V, 28V, 3.3V, 48V, 5V
|
3KVdc Isolation
UL60950-1 & CB
EN45545-2
EN50155 Compliant
|
2.28×2.40x0.50
(Half Brick)
|
|
|
CFB400W
|
400W
|
18~75V, 9~36V
|
12V, 24V, 28V, 48V, 5V
|
1.5KVDC Isolation
UL60950-1
|
4.60×2.40x0.50
(Full Brick)
|
|
NEW
|
CFB600W-110S
|
600W
|
43~160VDC
|
12V, 24V, 28V, 48V
|
2250Vdc Isolation
UL60950-1
EN45545-2
EN50155 Compliant
|
4.60×2.40x0.50
(Full Brick)
|
2:1 Input Range
|
|
Model
|
Power
|
Input Voltage
|
Output Voltage
|
Features
|
Dimensions (Inch)
|
|
|
CHB50
|
50W
|
18~36V, 36~75V, 9~18V
|
12V, 15V, 24V, 3.3V, 5V
|
1.5KVDC Isolation
UL60950-1
|
2.28×2.40x0.50
(Half Brick)
|
|
NEW
|
CQB75-300S
|
75W
|
180~450V
|
12V, 15V, 24V, 3.3V, 48V, 5V
|
3KVAC Isolation
UL62368-1 & CB
|
2.28×1.45x0.50
(Quarter Brick)
|
|
|
CHB75
|
75W
|
18~36V, 36~75V, 9~18V
|
12V, 15V, 24V, 3.3V, 5V
|
1.5KVDC Isolation
UL60950-1
|
2.28×2.40x0.50
(Half Brick)
|
|
|
CQB100-110S
|
100W
|
66~160V
|
12V, 24V, 3.3V, 5V
|
2250Vdc Isolation
UL60950-1
EN45545-2
EN50155 Compliant
|
2.28×1.45x0.50
(Quarter Brick)
|
|
|
CHB100
|
100W
|
18~36V, 36~75V
|
12V, 15V, 24V, 3.3V, 5V
|
1.5KVDC Isolation
UL60950-1
|
2.28×2.40x0.50
(Half Brick)
|
|
|
CHB100-110S
|
100W
|
66~160V
|
12V, 15V, 24V, 48V
|
3KVac Isolation
EN45545-2
EN50155 Compliant
|
2.28×2.40x0.50
(Half Brick)
|
|
|
CQB150-300S
|
150W
|
180~425V
|
12V, 15V, 24V, 28V, 48V, 5V
|
3KVAC Isolation
UL62368-1 & CB
|
2.28×1.45x0.50
(Quarter Brick)
|
|
|
CHB150
|
150W
|
36~75V
|
12V, 15V, 24V, 3.3V, 5V
|
1.5KVDC Isolation
UL60950-1
|
2.28×2.40x0.50
(Half Brick)
|
|
|
CHB150-110S
|
150W
|
66~160V
|
12V, 24V, 5V
|
2250Vdc Isolation
UL60950-1
EN45545-2
EN50155 Compliant
|
2.28×2.40x0.50
(Half Brick)
|
|
NEW
|
CQB200
|
200W
|
18~36V
|
24V, 28V
|
2250Vdc Isolation
UL62368-1
EN45545-2
|
2.28×1.45x0.50
(Quarter Brick)
|
|
|
CHB300-300S
|
300W
|
180~425V
|
12V, 24V, 28V, 48V, 5V
|
3KVAC Isolation
UL60950-1 & CB
|
2.28×2.40x0.50
(Half Brick)
|
|
|
CHB350
|
350W
|
18~36V, 36~75V
|
12V, 24V, 28V, 3.3V, 48V, 5V
|
1.5KVDC Isolation
UL60950-1
|
2.28×2.40x0.50
2.28×2.40x0.52
(Half Brick)
|
|
|
CFB600
|
600W
|
18~36V, 36~75V
|
12V, 24V, 28V, 32V, 48V
|
1.5KVDC Isolation
UL62368-1
|
4.60×2.40x0.50
(Full Brick)
|
|
|
CFB600-300S
|
600W
|
180~425V
|
12V, 24V, 48V
|
3KVAC Isolation
UL60950-1
|
4.60×2.40x0.50
(Full Brick)
|
|
|
CFB750-300S
|
750W
|
200~425V
|
12V, 15V, 24V, 28V, 36V, 48V
|
3KVAC Isolation
|
4.60×2.40x0.50
(Full Brick)
|
|
NEW
|
CFB800
|
800W
|
18~36V
|
28V
|
1.5KVDC Isolation
|
4.60×2.40x0.50
(Full Brick)
|
|
