| 產品名稱：GAIA電源模塊(4-500W) |
| 產品詳細說明 |

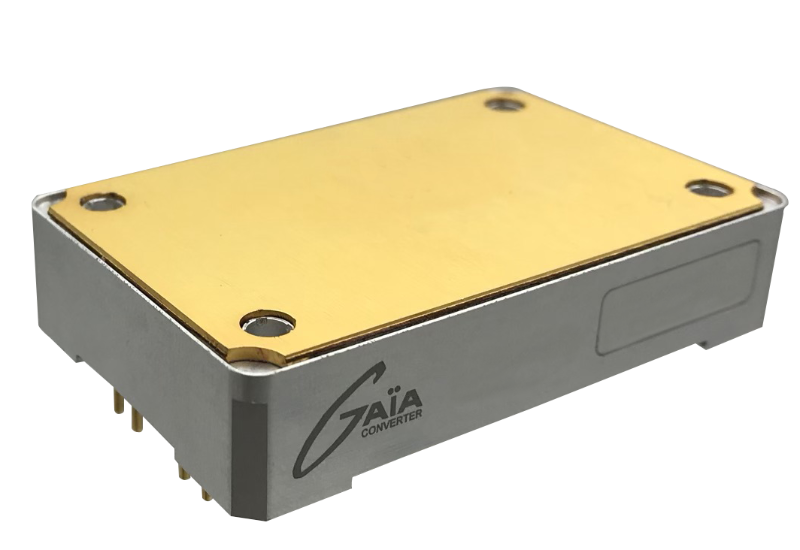

GAIA電源模塊(4-500W)系列
Gaia Converter offers a complete line of
isolated DC-DC Converters for Military,
Avionics, Rail and other rugged Industrial
applications.
These converters range from 4W to 250W
output power and multiple input voltage ranges
and single, dual or triple output configurations.
Here below is a quick selection table with links
to all individual product family pages.
|
High-Rel Grade DC-DC modules are designed specifically to meet key Avionics/Defense performance specifications for bus input compatibility, EMI/RFI requirements, severe environments and operating temperatures of -40°C to +105°C (-55°C also available). This line of products satisfies the Department of Defense for Non Development Items (NDI) and Commercial Off-The-Shelf (COTS) equipment.
Industrial Grade DC-DC Converter Models are designed for standard, multi-batteries input ranges and operating temperatures of -40°C to +95C to satisfy Railway / Transportation and most highly demanding Industrial applications.
|
|
Family
|
Power
|
Input Range(s)
|
Outputs
|
Vout
|
Complementary Functions
|
Packages
|
|
MGDxx-04
|
4W
|
4.5-5.5V, 18-36V,
9-36V, 16-40V, 36-140V
|
1-3
|
3.3-30V
|
On/off
|
DIL24 package
|
|
MGDDI-06
NEW!
|
6W
|
12-160V
|
2
(isolated)
|
5-48V
|
On/off, Trim 80-110%,
|
1" x 0.75" package
|
|
MGDD-08
NEW!
|
8W
|
4.5-33V, 9-60V
|
2
(isolated)
|
3.3-48V
|
On/off, Trim 80-110%,
Sync
|
1" x 0.75" package
|
|
MGDxx-10
|
10W
|
4.5-5.5V, 18-36V, 4.7-16V,
9-36V, 16-40V, 36-140V
|
1-3
|
3.3-30V
|
On/off
|
1" x 1.5" package
|
|
MGDSx-18
|
18W
|
4.5-5.5V, 4.7-16V, 9-36V,
16-40V, 36-140V
|
1
|
3.3-15V
|
On/off
|
1" x 1.5" package
|
|
MGDDx-20
NEW!
|
20W
|
12-160V
|
2
(isolated)
|
5-48V
|
On/off,
Trim 80-110%, Sync
|
1" x 1.5" package
|
|
MGDxx-20
|
20W
|
4.5-5.5V, 18-36V, 4.7-16V,
9-36V, 16-40V, 36-140V
|
1-3
|
3.3-30V
|
On/off
|
2" x 2" package
|
|
MGDD-21
NEW!
|
20W
|
4.5-33V
9-60V
|
2 (isolated)
|
3.3-48v
|
Synch, Trim 80-110%,
UVLO, Sync
|
1" x 1.25" package
|
|
MGDxx-25
|
25W
|
9-36V, 16-40V,
18-75V
|
1-3
|
3.3-30V
|
On/off
|
2" x 2" package
|
|
MGDxx-26
|
26W
|
9-36V, 16-40V
|
1
|
3.3-15V
|
On/off, Trim 80-110%, Sense,
Sync, Share
|
2" x 2" package
|
|
CGDx-30
Thousands of
Output Combinations
|
30W
|
4.7-16V, 9-36V, 16-40V,
18-36V, 36-140V
|
1-6
|
3.3-15V
|
On/off, Trim 95-105%, Sense
|
2" x 3" package
|
|
MGDxx-35
|
35W
|
9-36V, 16-75V,
18-75V, 36-140V
|
1-3
|
3.3-30V
|
On/off, Trim 95-105%,
Sync
|
2" x 3" package
|
|
MGDD-40
NEW!
|
40W
|
4.5-33V, 9-60V
|
2
(isolated)
|
3.3-24V
|
Sync, On/off, Trim 80-110%,
Sync
|
1.6" x 1.3" package
|
|
MGDDx-60
NEW!
|
60W
|
12-160V
|
2
(isolated)
|
5-48V
|
On/off, Trim 80-110%,
Sync
|
2" x 3" package
|
|
MGDxx-60
|
60W
|
14-55V, 36-140V
|
1-2
|
3.3-26V
|
On/off, Trim 80-110%,
Sense, Sync
|
2" x 3" package
|
|
MGDSx-75
|
75W
|
9-36V, 9-45V, 18-75V, 16-80V, 155-480V
|
1
|
3.3-28V
|
On/off, Trim 90-110%,
Sense, Sync
|
1/4 brick package
|
|
MGDD-80
NEW!
|
80W
|
9-60V
|
2
(isolated)
|
5-24V
|
On/off, Trim 80-110%,
Sync
|
2" x 1.6" package
|
|
MGDSx-100
|
100W
|
10.7-100V, 14-55V,
36-140V
|
1
|
3.3-26V
|
On/off, Trim 80-110%,
Sense, Sync
|
2" x 3" package
|
|
MGDSI-124
NEW!
|
120W
|
9-36V
|
1
|
5-24V
|
On/off, Trim 90-110%, Sense
|
1/4 brick package
|
|
MGDSx-150
|
150W
|
9-36V, 9-45V, 18-75V, 16-80V,
120-480V
|
1
|
3.3-28V
|
On/off, Trim 10-110%, Sense,
Sync, Share
|
1/2 brick package
|
|
MGDS-155
NEW!
|
150W
|
9-45V, 16-80V,
155-480V
|
1
|
3.3-26V
|
On/off, Trim 90-110%, Sense,
Sync, Share
|
1/4 brick package
|
|
MGDS-160
NEW!
|
160W
|
9-45V
|
1
|
5-28V
|
On/off, Trim 90-110%, Sense
|
1/4 brick package
|
|
MGDSI-164
NEW!
|
160W
|
9-36V
|
1
|
5-24V
|
On/off, Trim 90-110%, Sense
|
1/4 brick package
|
|
MGDS-200
|
200W
|
9-45V, 16-80V,
|
1
|
3.3-24V
|
On/off, Trim 10-110%, Sense,
Sync, Share
|
2" x 3" package
3D cooling package
|
|
MGDS-201
NEW!
|
200W
|
9-45V, 16-80V,
|
1
|
3.3-24V
|
On/off, Trim 10-110%, Sense,
Sync, Share, Current source trim
|
2" x 3" package
|
|
MGDSI-204
NEW!
|
200W
|
9-36V
|
1
|
5-12V
|
On/off, Trim 90-110%, Sense
|
1/4 brick package
|
|
MGDS-205
NEW!
|
200W
|
9-45V
|
1
|
5-12V
|
On/off, Trim 90-110%, Sense
|
1/4 brick package
|
|
MGDSI-254
NEW!
|
250W
|
9-36V
|
1
|
12-15V
|
On/off, Trim 90-110%, Sense
|
1/4 brick package
|
|
MGDS-250
NEW!
|
250W
|
9-36V
|
1
|
5-24V
|
On/off, Trim 90-110%, Sense
|
1/4 brick package
|
|
MGDS-500
NEW!
|
500W
|
9-36V
|
1
|
12-24V
|
On/off, Trim 90-110%, Sense
|
half brick package
|
|
|
